Mobile Fueling Cart – Belt Driving
Mobile Fueling Cart – Belt Driving YB Cart-B Series mobile fuel unit contains PD positive displacement flow meter,pump and drived motor,power control panel, applied in boat refueling in marine,public transportation vehicles,trucks,tankers and etc. With advantage of high flow rate,long service life,high accuracy,convenient and easy use.
Gravity Unloading T-80 Flow Meter 2nd Generation
Gravity unloading T-80 FLOW METER This second generation T-80 flowmeter upgrade and iterate on the basis of old products, and optimized LED panel, used for the gravity flow unloading of the tanker at the gas station, and can also be used for pipelines InstalL measurement. It can be used to measure various oil products except water. Simply and flexiblely installation, operation, measurement, high Percision and long service life. It can be used by connecting to the outlet of the tank without the pump.
Gravity Unloading T-80 Flow Meter With Advanced Valve
Gravity unloading T-80 FLOW METER This new T-80 flowmeter upgrade and iterate on the basis of old products, increased advanced valve, used for the gravity flow unloading of the tanker at the gas station, and can also be used for pipelines InstalL measurement. It can be used to measure various oil products except water. Simply and flexiblely installation, operation, measurement, high Percision and long service life. It can be used by connecting to the outlet of the tank without the pump.
2nd Generation Gravity Unloading T-80 Flow Meter
Gravity unloading T-80 FLOW METER The second generation T-80 flowmeter upgrade and iterate on the basis of old products, used for the gravity flow unloading of the tanker at the gas station, and can also be used for pipelines InstalL measurement. It can be used to measure various oil products except water. Simply and flexiblely installation, operation, measurement, high Percision and long service life. It can be used by connecting to the outlet of the tank without the pump.
Shaft Coupling Pump
The total set device with durable solid quality pump for fast and low noise operation; Sliding vane design provides sustained and trouble free operation,high reliability. And adjustable relief valve protects pump from excesssive pressure.
V-Belt Driven Pump
V-Belt Driven Pump The total set device with durable solid quality pump for fast and low noise operation; Sliding vane design provides sustained and trouble free operation,high reliability. And adjustable relief valve protects pump from excesssive pressure.
Mobile Fueling Cart – Shaft Coupling Driving
Mobile Fueling Cart-Shaft Coupling Driving YB Cart-C Series mobile fuel unit contains PD positive displacement flow meter,pump and drived motor,power control panel, applied in boat refueling in marine,public transportation vehicles,trucks,tankers and etc. With advantage of high flow rate,long service life,high accuracy,convenient and easy use

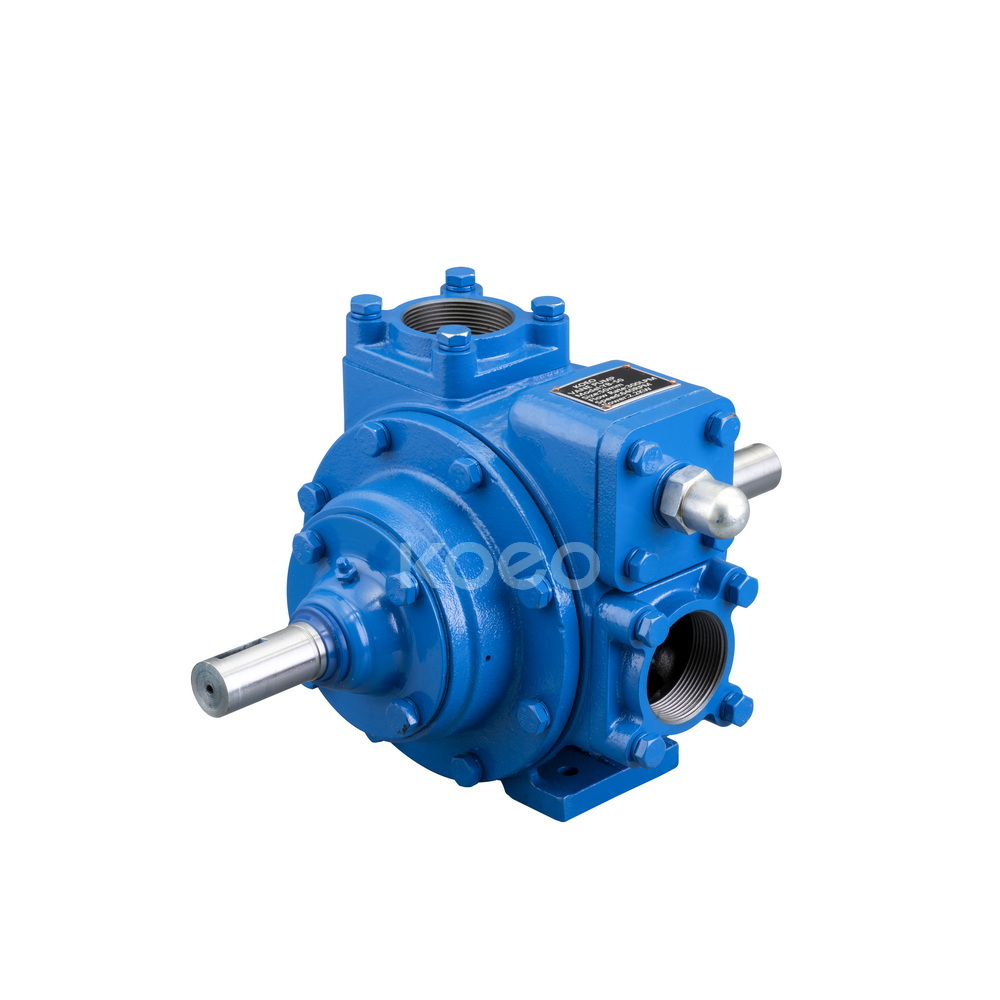

Rotary Vane Pump
Rotary Vane Pump YB Series Rotary Vane Blackmer Pump sliding vane pump is with by-pass valve built-in. The pump uses a rotor with sliding vanes to drive the liquid transfer. The material of construction is nodular cast iron with self-lubricating vanes. Due to its superior performance, the pump can handle viscous and volatile liquid and require less horsepower than other equivalent pumps. The pump has its obvious advantage in the transmission of high flow at low revolution.
Sliding Vane Pumps, Rotary Sliding Vane Pumps
Koeo rotary sliding vane pump Koeo positive displacement pumps, rotary sliding vane pump have revolutionized the pumping industry with their unique sliding vane technology. This revolutionary rotary vane design allows the pumps to self-adjust for wear to help maintain flow rates. This sliding vane pump design creates excellent self-priming and dry-run capabilities, while also providing sustained performance and trouble-free operation.

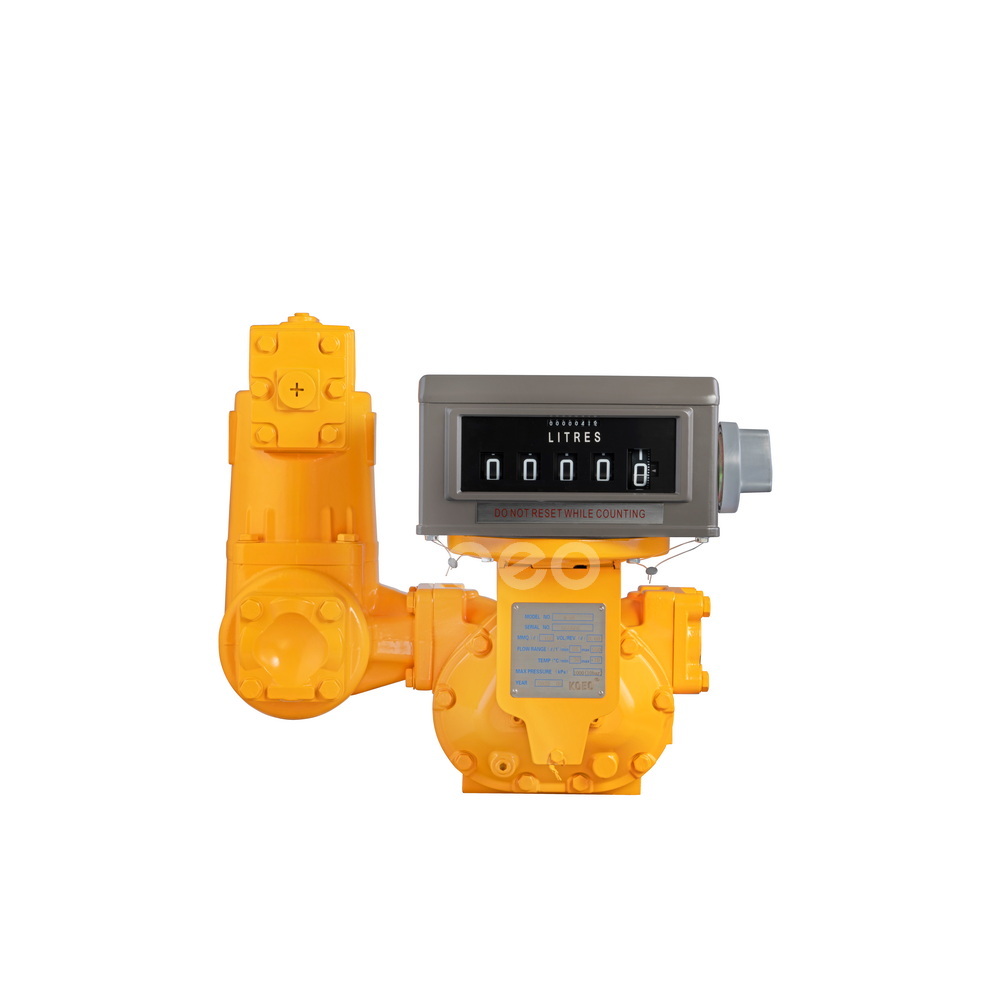

Positive displacement flow meter (1.5inch, 2inch, 3inch, 4inch) M40, M50, M80, M100
Koeo M Series rotary motion positive displacement (PD) meters offer the ultimate in measurement accuracy for custody transfer of petroleum products, aviation fuels, LPG, and a broad range of industrial liquids. Koeo meters incorporate a unique design, presenting minimal intrusion in a flowing stream of liquid, as well as minimal pressure drop through the meter. The Koeo meter consists of a housing in which three synchronized rotors turn with no metal-to-metal contact. Hydraulic sealing is accomplished by a stationary boundary layer of liquid, not by the wiping action of mechanical parts. Koeo M Series positive displacement (PD) meters offer the ultimate in measurement accuracy for custody transfer of petroleum products, aviation fuels, LPG, and a broad range of industrial liquids. Koeo M Series positive displacement (PD) meters incorporate a unique design, presenting minimal intrusion in a flowing stream of liquid, as well as minimal pressure drop through the meter. The Koeo meter consists of a housing in which three synchronized rotors turn with no metal-to-metal contact. Hydraulic sealing is accomplished by a stationary boundary layer of liquid, not by the wiping action of mechanical parts.

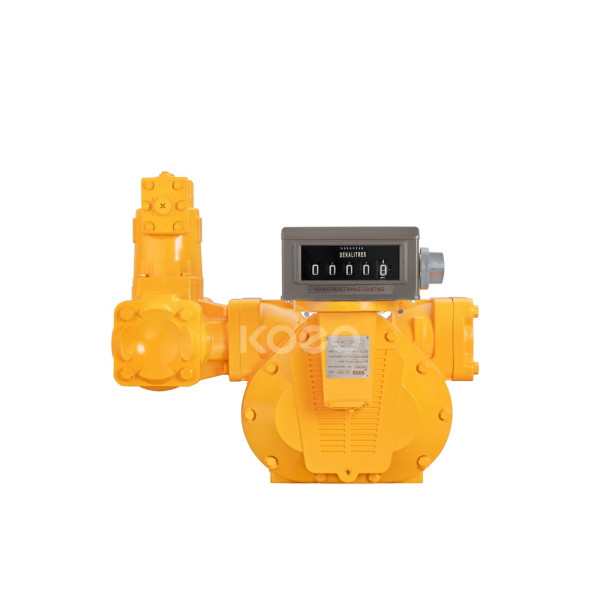

Positive Displacement Flowmeter
M series Positive Displacement Flowmeter Koeo M Series positive displacement (PD) meters offer the ultimate in measurement accuracy for custody transfer of petroleum products, aviation fuels, LPG, and a broad range of industrial liquids. Koeo meters incorporate a unique design, presenting minimal intrusion in a flowing stream of liquid, as well as minimal pressure drop through the meter. The Koeo meter consists of a housing in which three synchronized rotors turn with no metal-to-metal contact. Hydraulic sealing is accomplished by a stationary boundary layer of liquid, not by the wiping action of mechanical parts. Low pressure drop—will operate on gravity flow or pump pressure. Sustained accuracy—no wear from metal-to-metal contact inside the measuring chamber means minimal deterioration in accuracy over time, fewer recalibrations, and longer service life. Wide temperature range—products can be metered accurately from -40° F (-40° C) to 160° F (71° C). Wide viscosity range—Koeo meters can accurately meter products from less than 30 SSU (less than 1 centipoise) to 1,500,000 SSU (325,000 centipoise). Maximum adaptability—right angle design with choice of stock or custom elbows/ fittings provides unequaled mounting flexibility to meet your installation requirements.

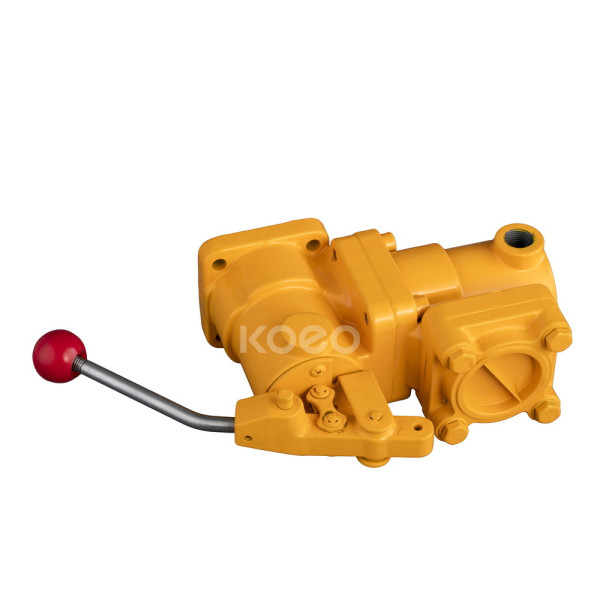

Mechanical Piston Valve Air-activated Piston Check-Valve
V series Mechanically actuated piston valves are designed for mounting on the meter outlet to completely shutoff the liquid flow with easy operation under any pressure system. The valve can be operated manually or connected via a mechanical linkage to a preset counter on the meter for single stage closure or two-stage closure to eliminate hydraulic shock. The valve is indexable in 90o turn for up & down or side facing outlet. 1.5”, 2",3",4" available for option. K Series Air Activated Differential Check Valves are installed at the outlet of the meter, which is designed to stop the flow of liquid whenever air is present to ensure accurate measurement.
